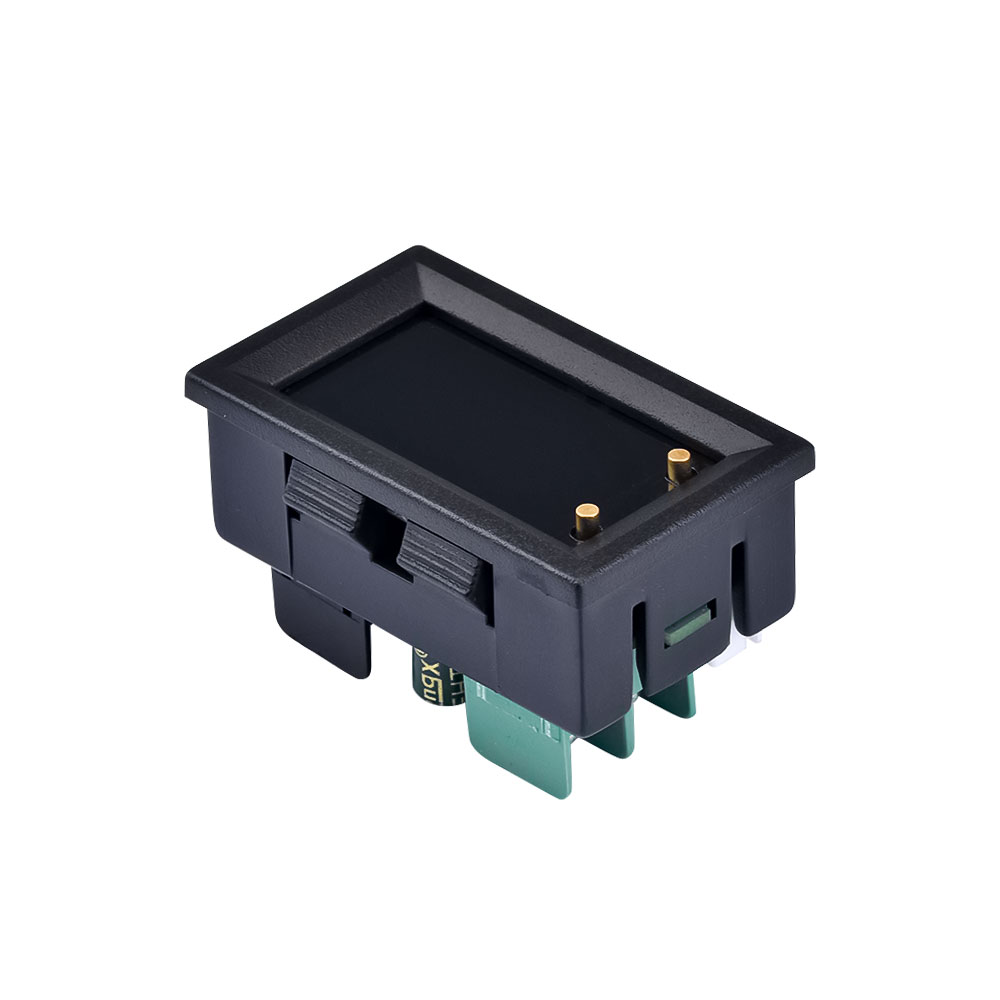

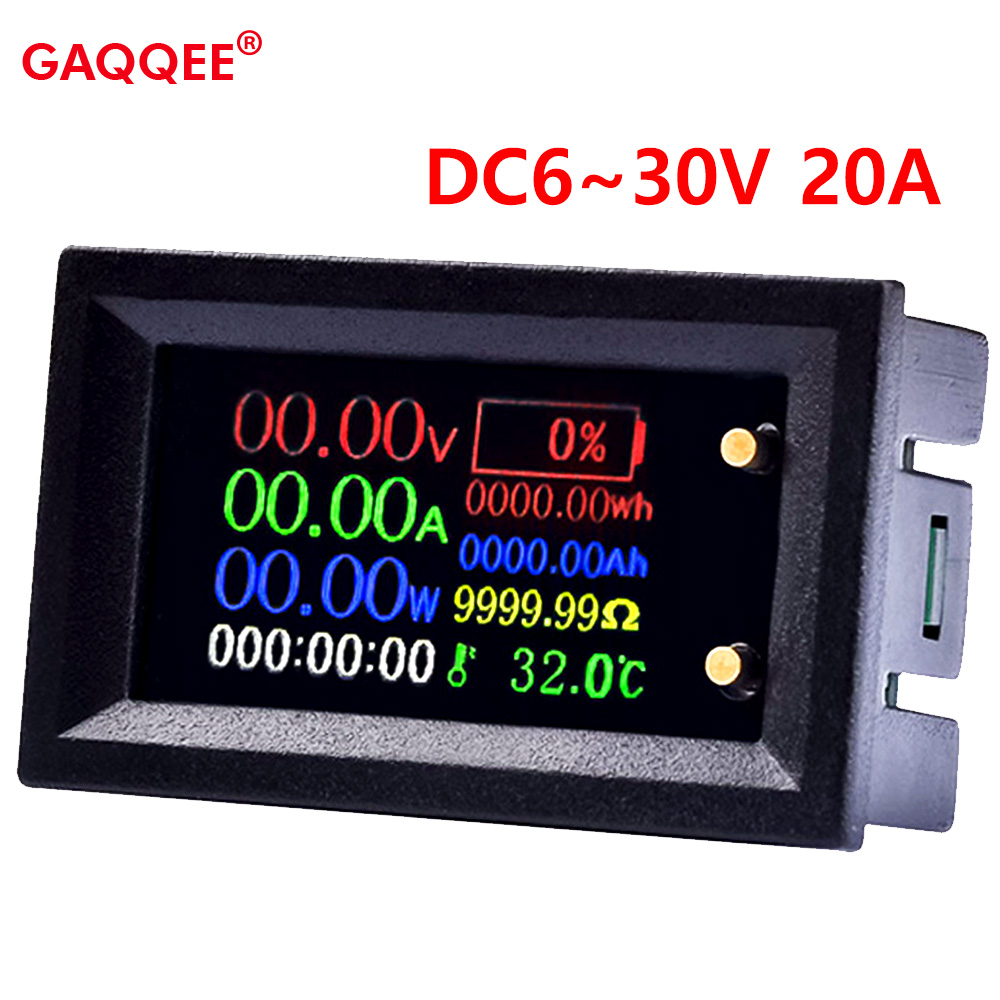

DC30V20A Digital Voltmeter Ammeter 9in1 Multifunction Tester IPS LCD Voltage Current Power Energy Battery Electricity Test Meter

DC6-30V 20A Voltmeter Ammeter Multifunction Tester IPS LCD Color Screen 9-in-1 For Voltage Current Power Battery Internal Resistance Operation Time Temperature Capacity Power Operation time Measurement Electrical Meter

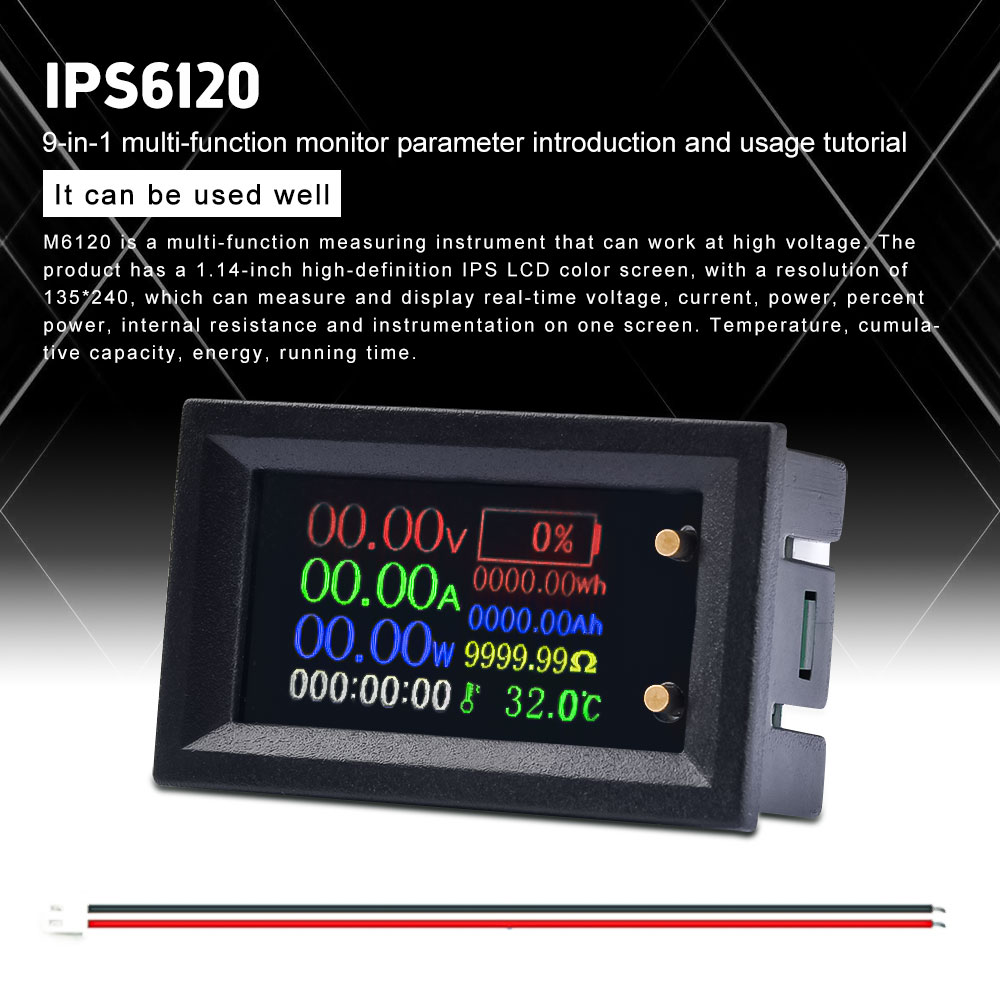

Features:

-Multifunctional measuring instrument for high voltage operation

-1.14-inch high-definition IPS LCD color screen, 135*240 resolution

-Maximum current measurement 20A

-Support data clearing, no-load zeroing, voltage fine-tuning, current fine-tuning

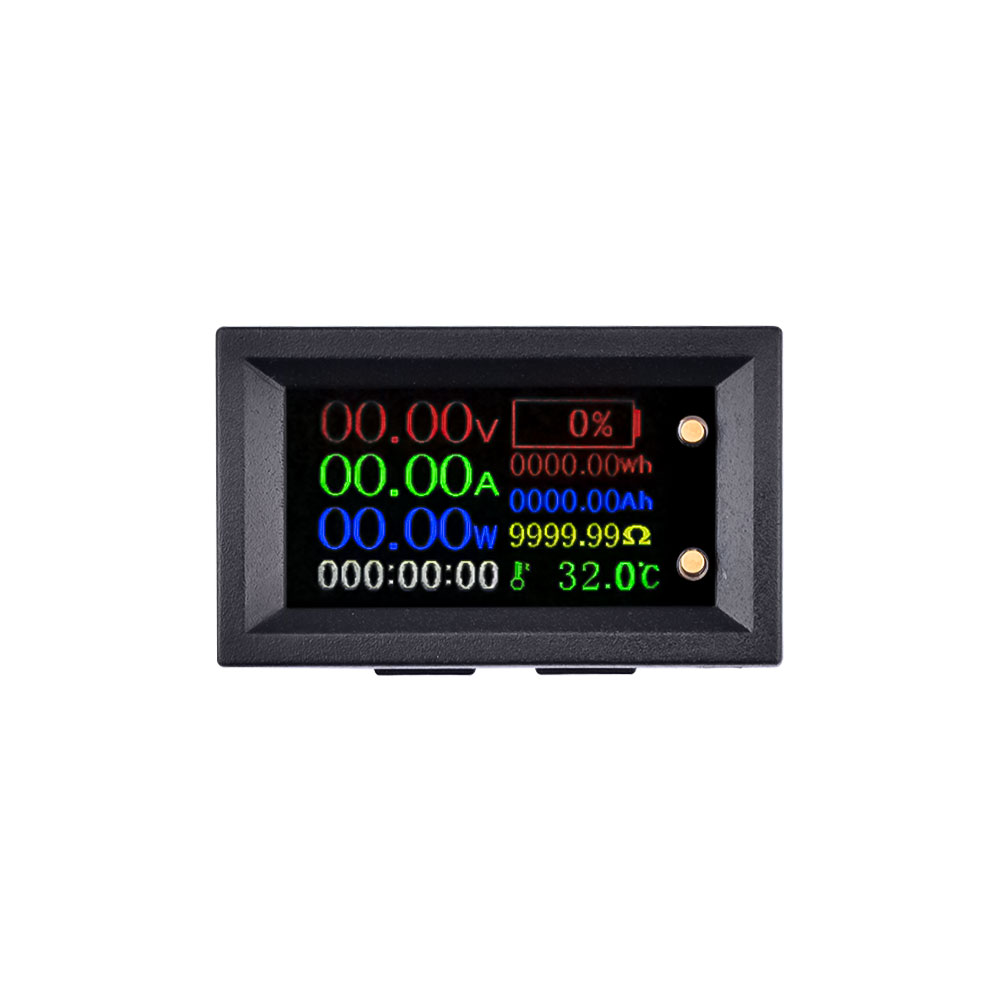

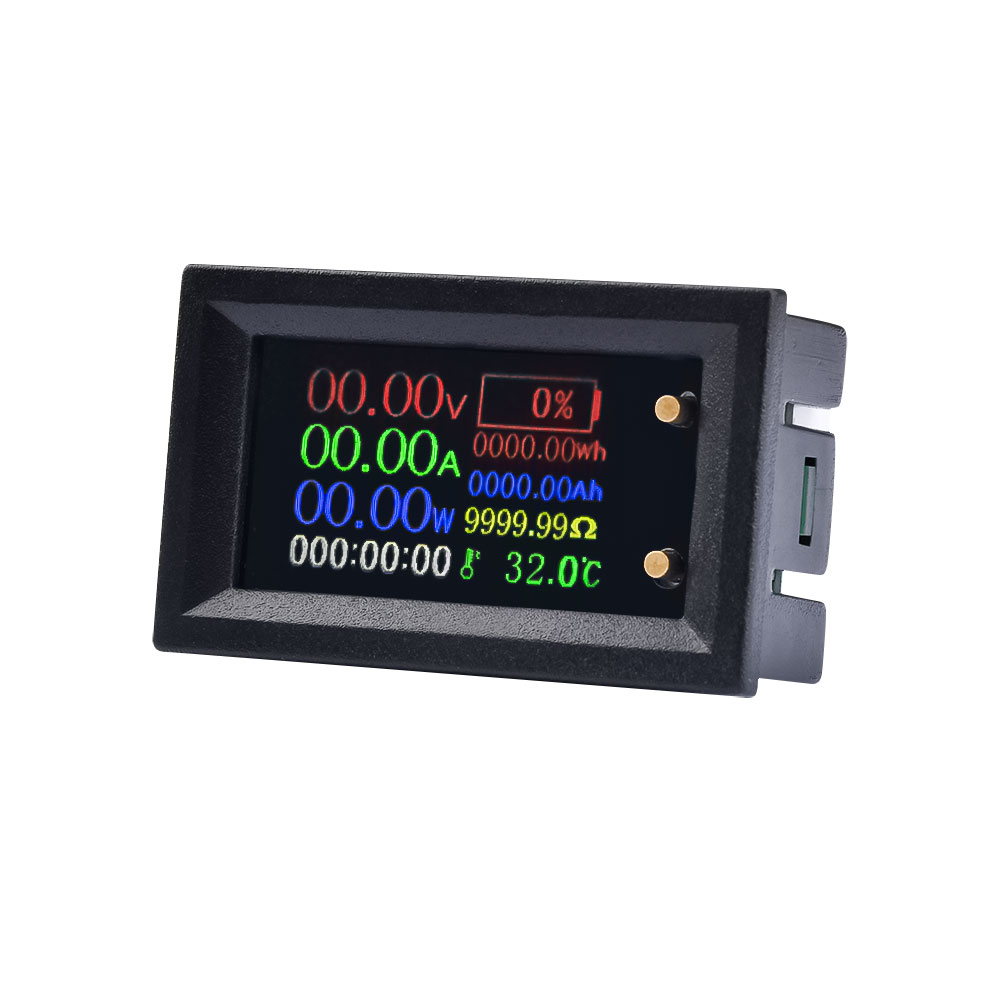

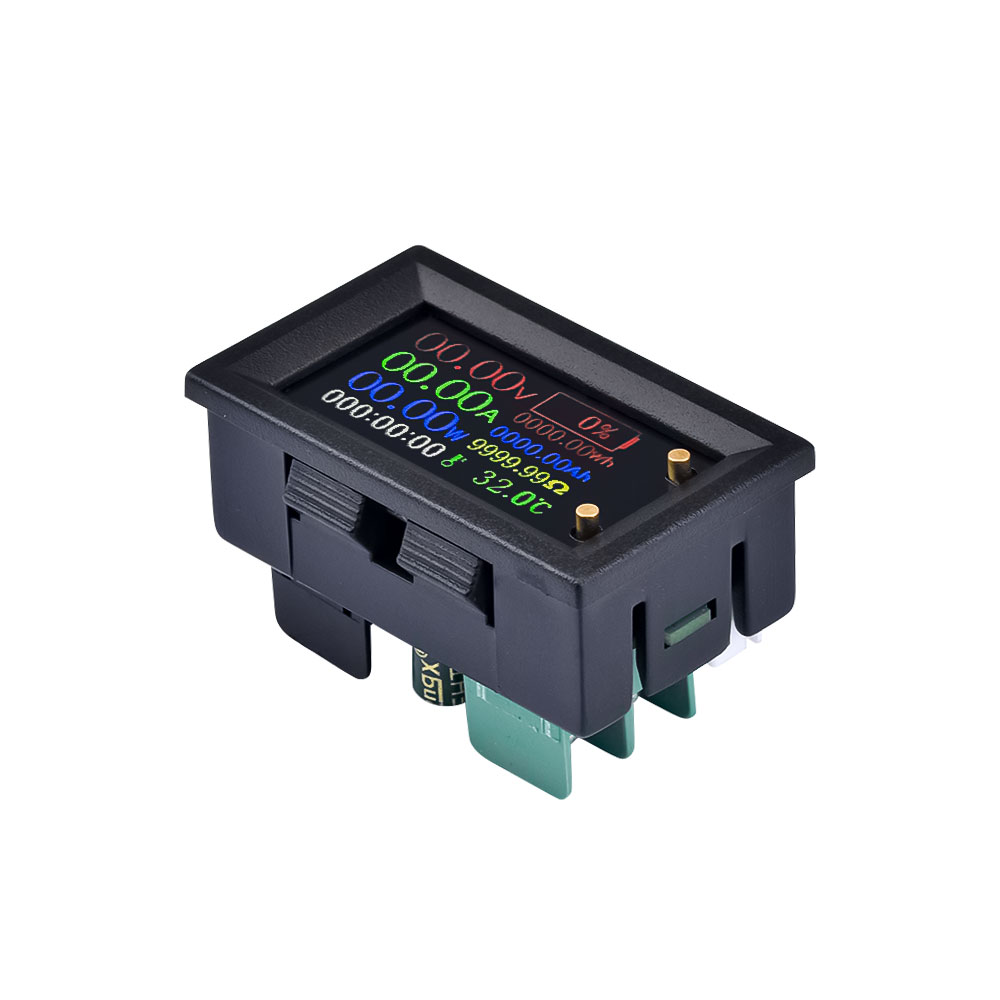

-Measurement and display of real-time voltage, current, power, -percentage of electricity and internal resistance and instrument temperature, cumulative capacity, energy,peration

Parameter:

Input/output interface: 20A high current 2P terminal
Instrument working voltage: ①XH-2.54-2P red and black wires, independent power supply DC6~30V ②Common power supply DC6~120V
Voltage measurement range: DC0~120V
Current measurement range: 0.00A~20.00A
Capacity measurement range: 0~9999.99Ah
Electricity metering range: 0~9999.99Wh
Impedance measurement range: 0~9999.99Ω
Temperature measurement range: 0~99℃
Time measurement range: 0~999:59:59 (hour:minute:second)
Data reset: support
No-load return to zero: support
Voltage fine-tuning: support
Current trimming: support
Percentage power display: Supports percentage power based on voltage reference (full power and no power voltage need to be manually set)

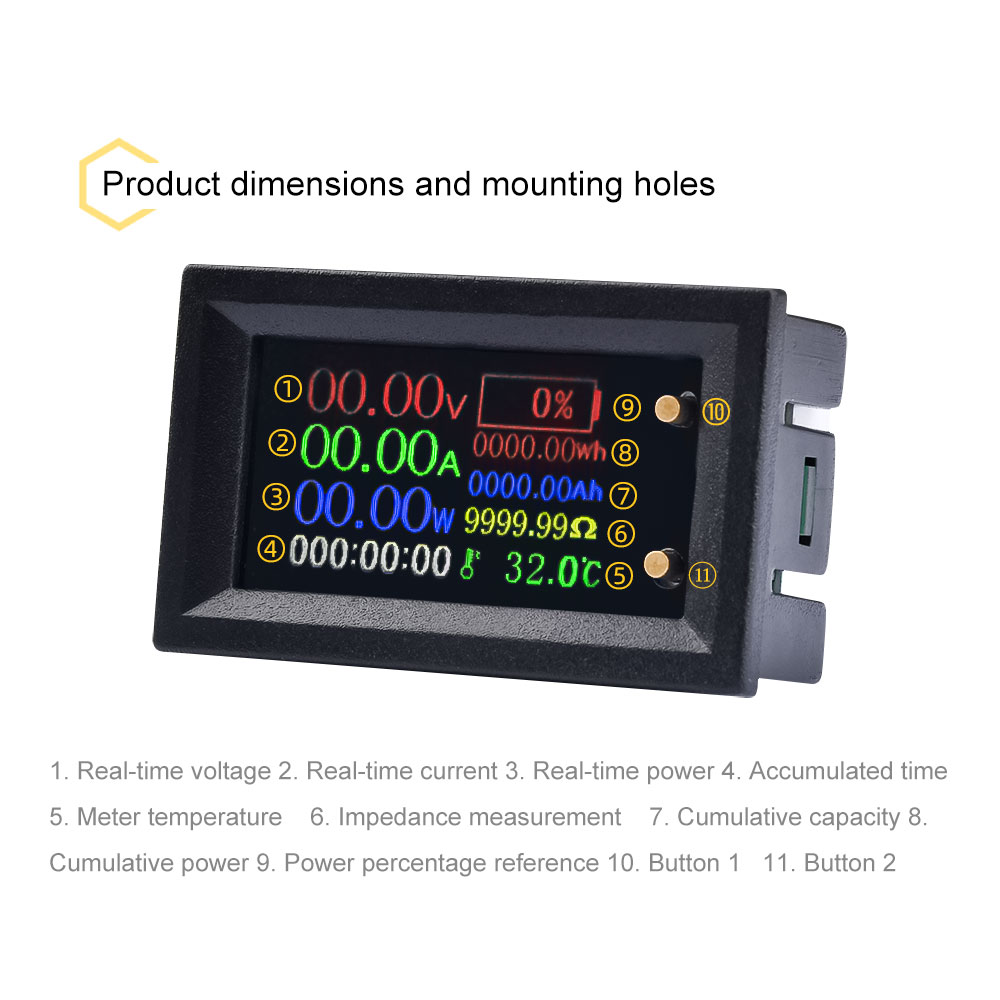

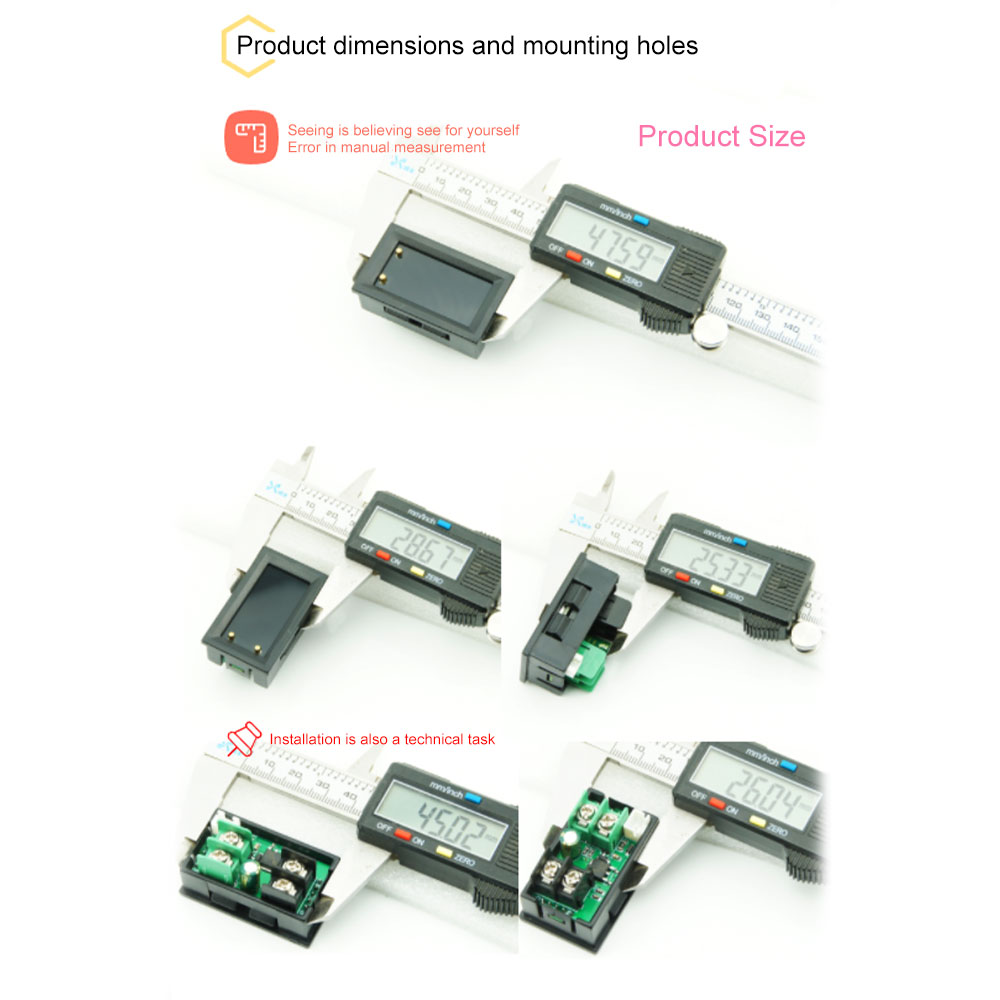

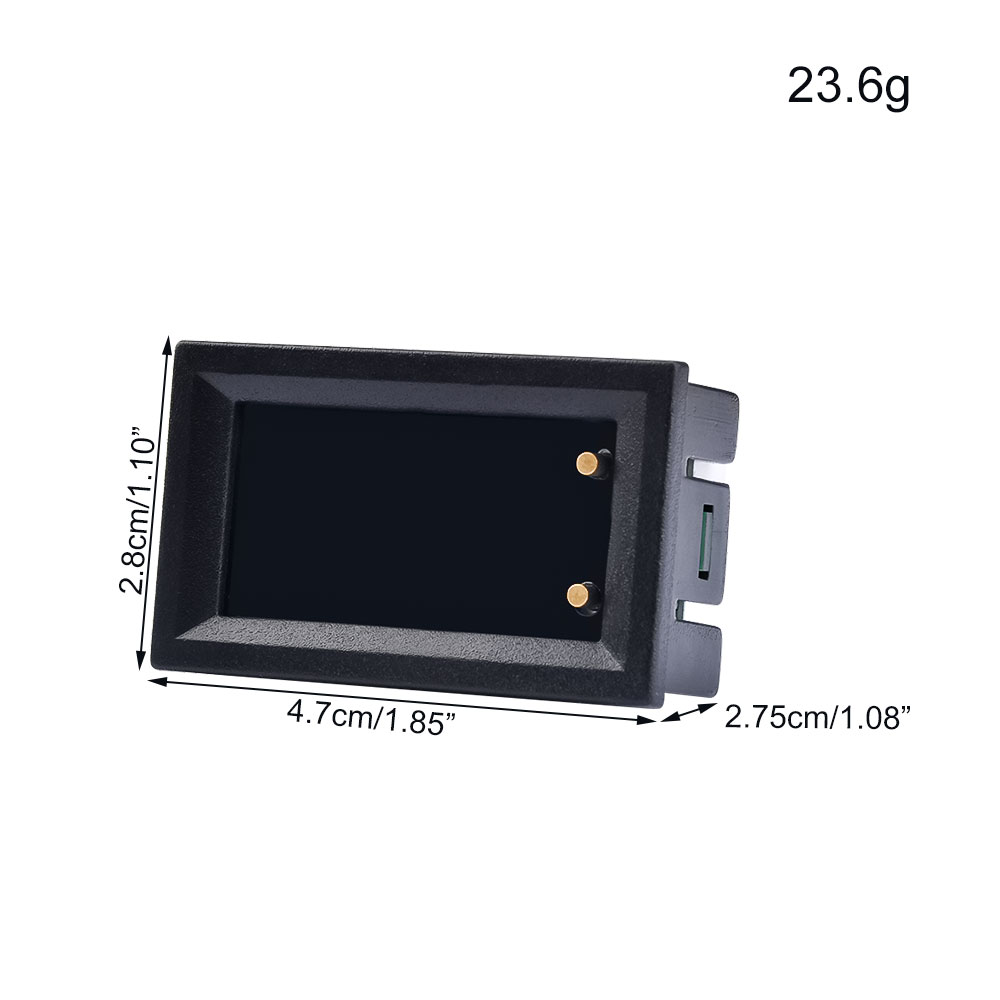

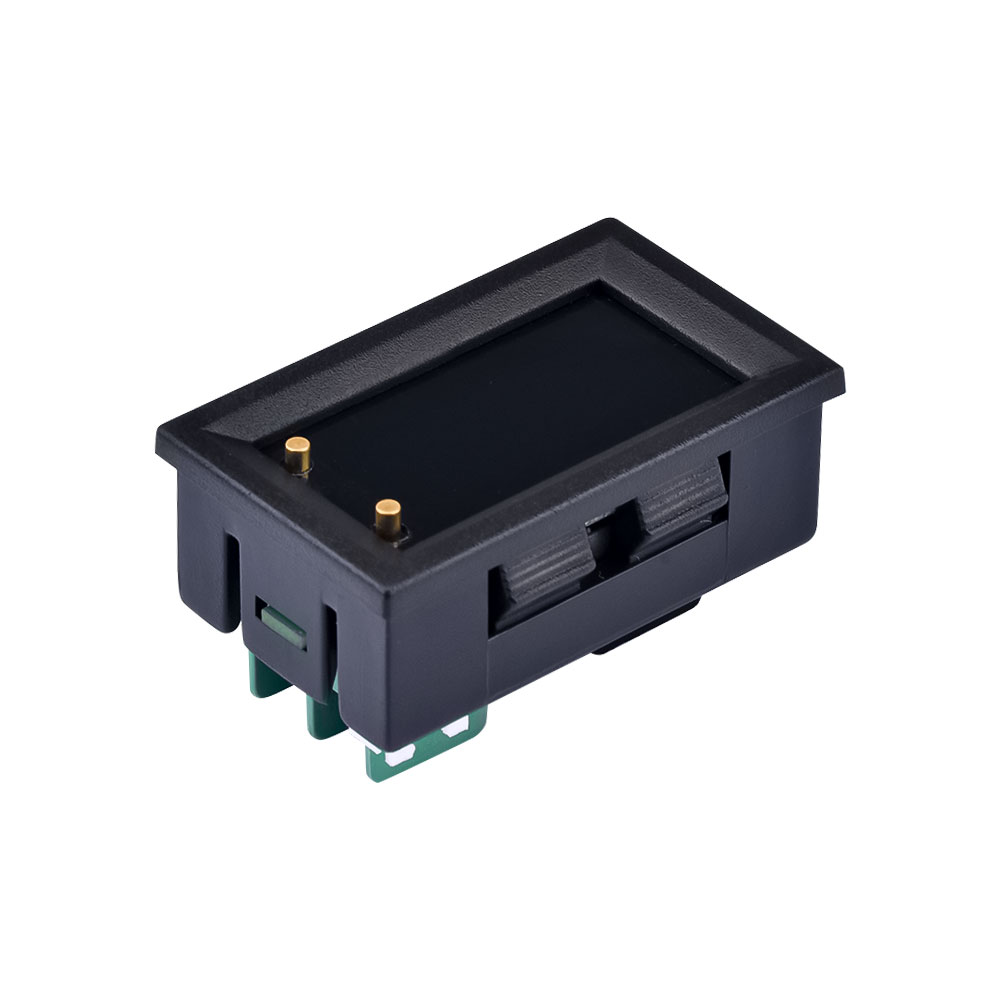

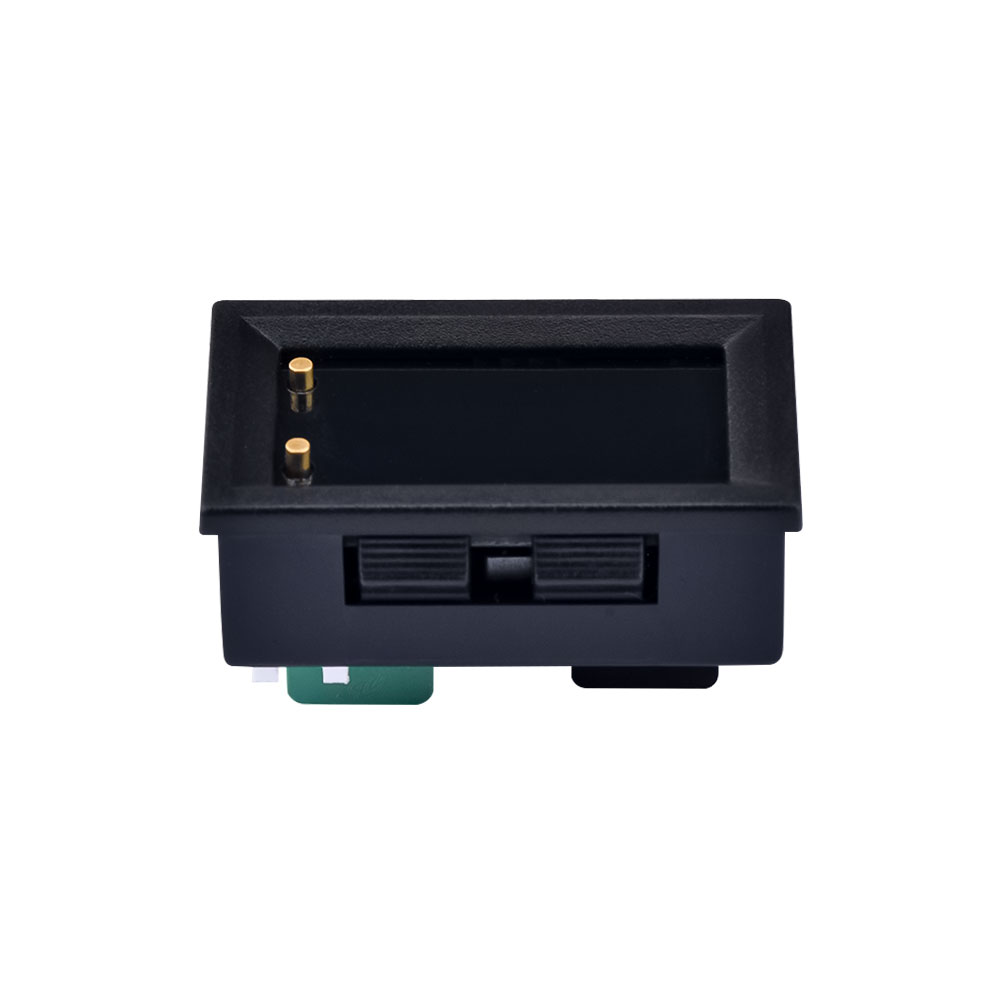

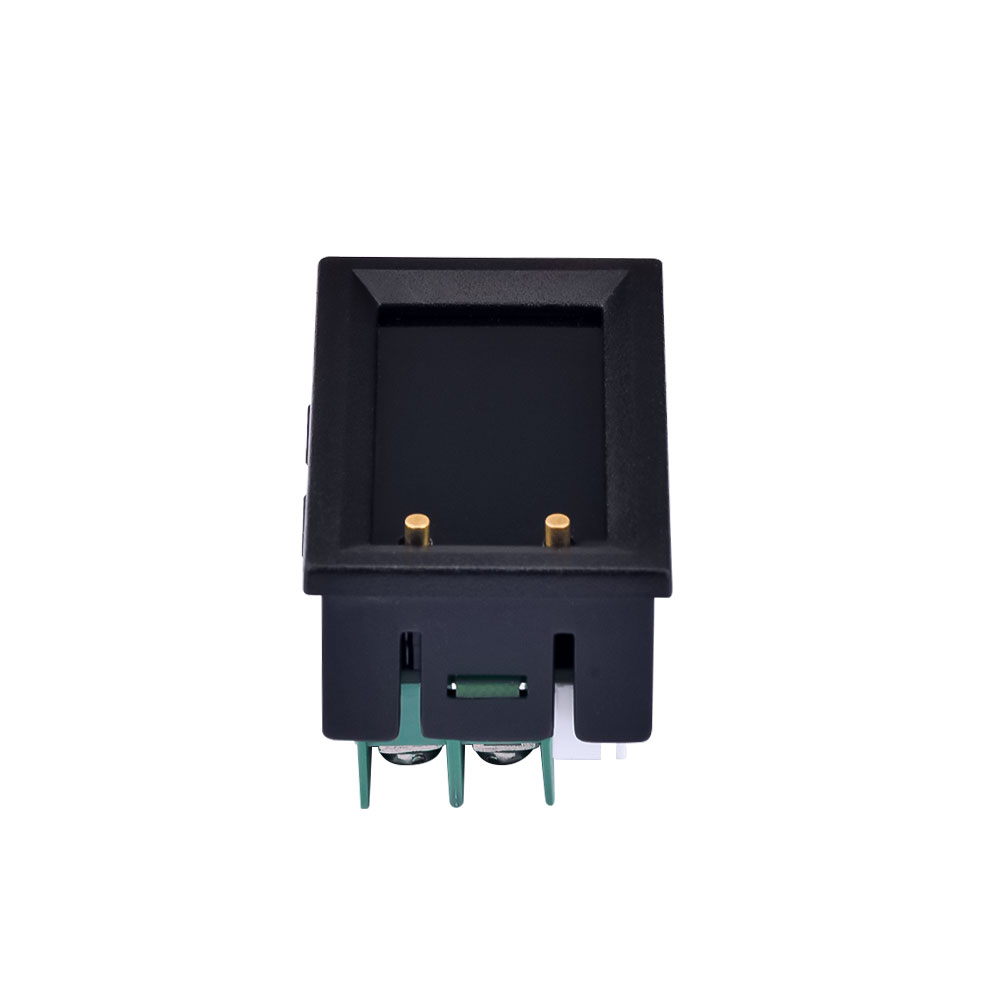

Product size: 47.59×28.67×25.33mm
Installation hole: 45×26mm
Product weight: 26g

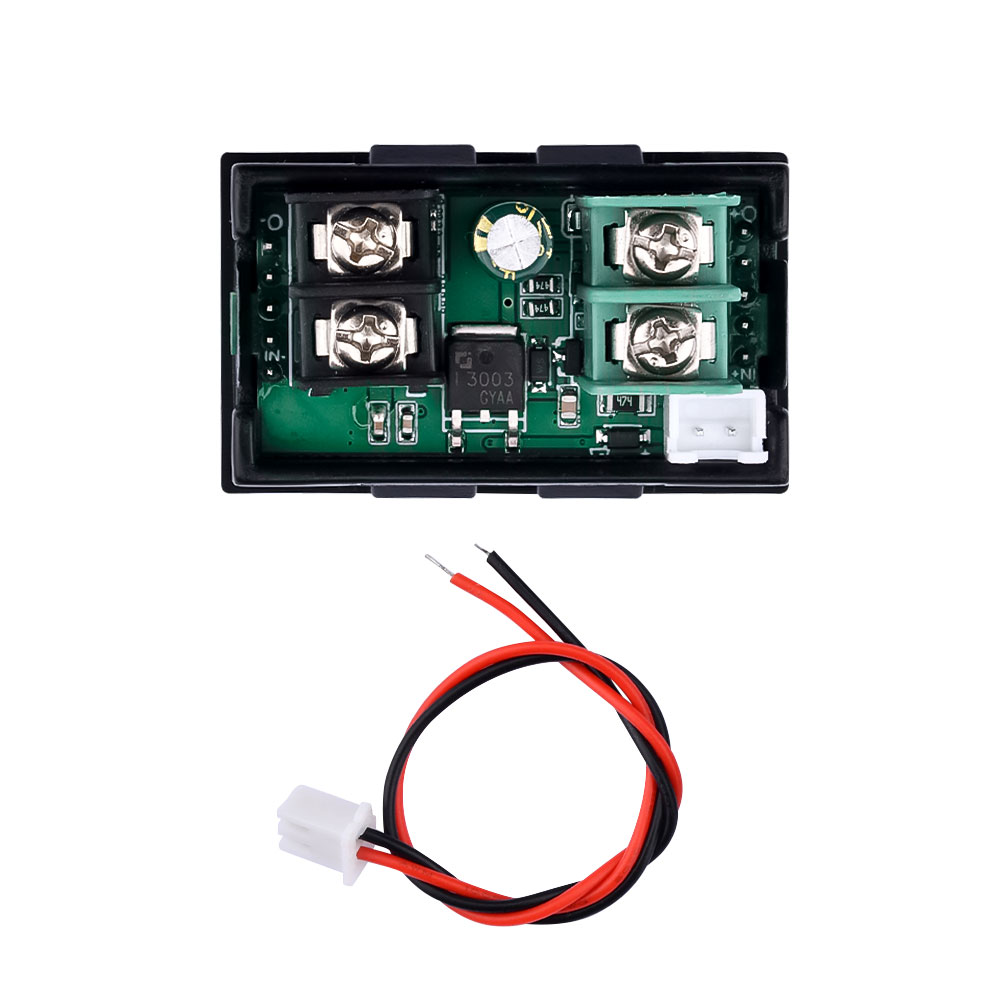

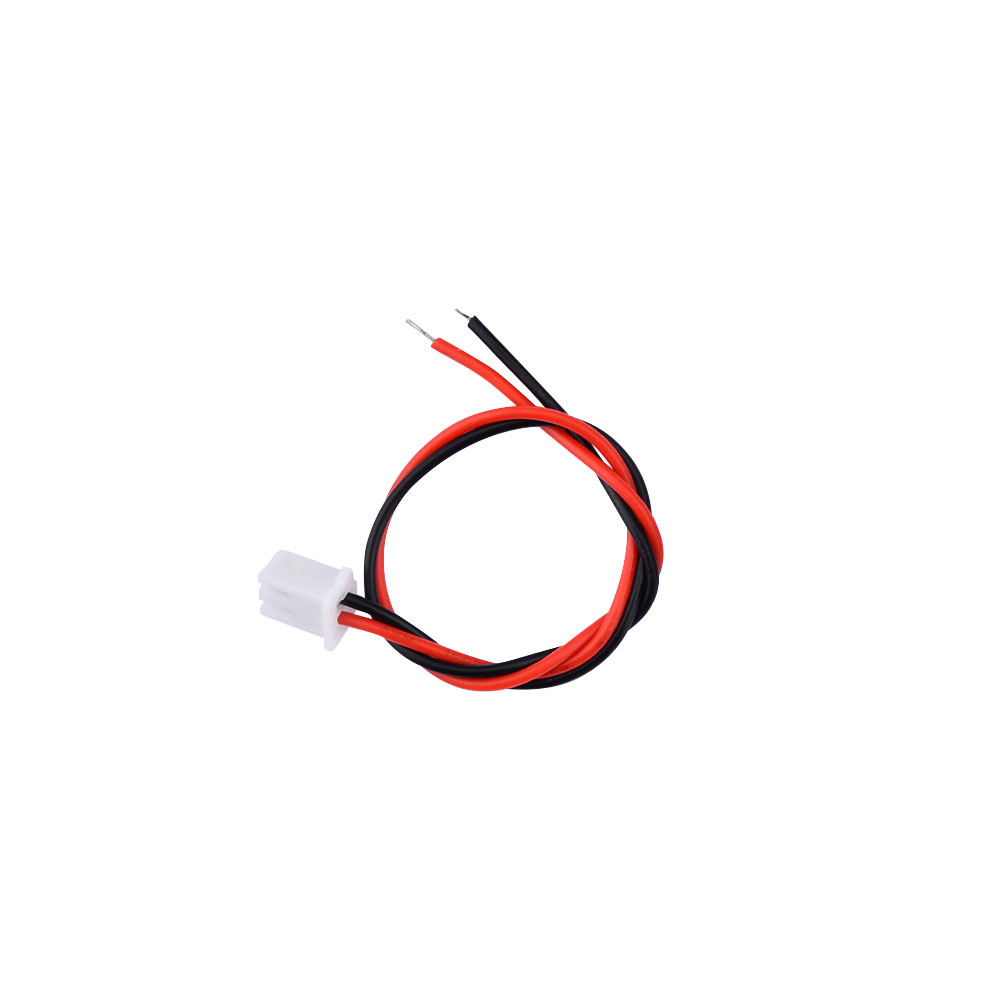

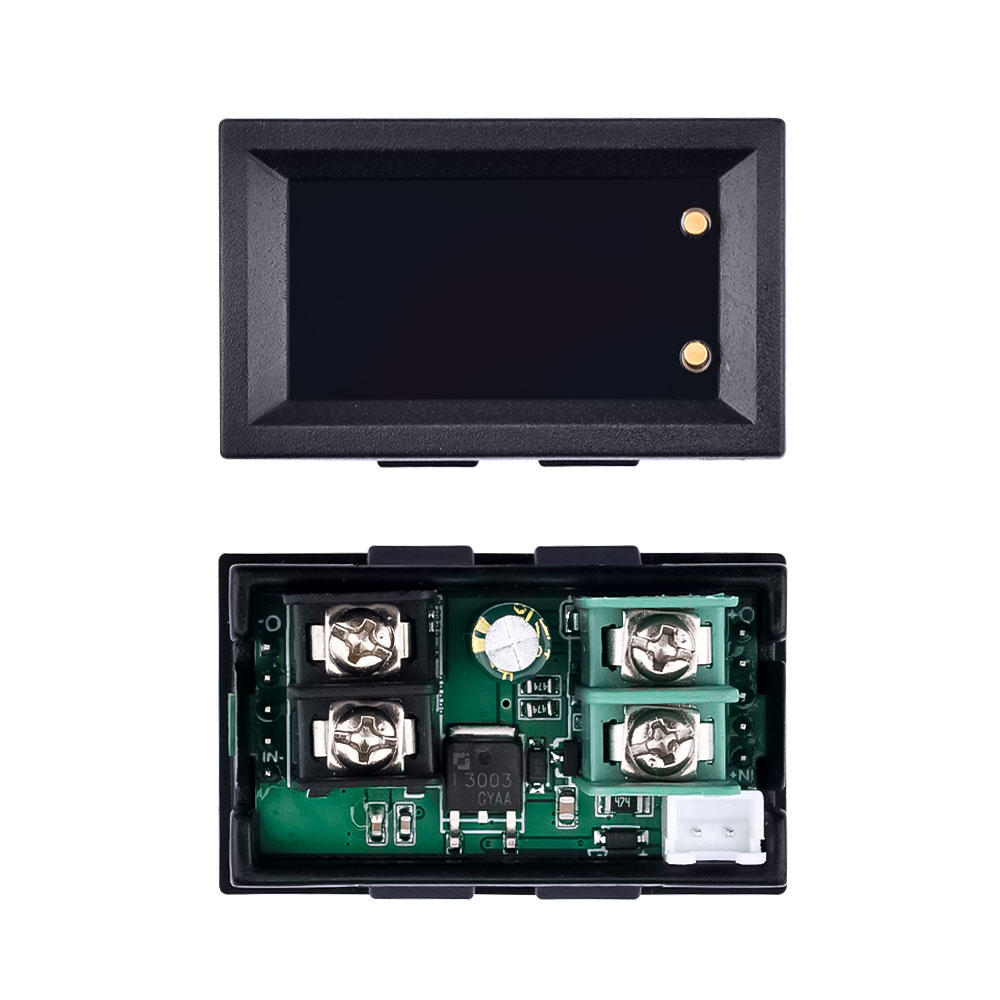

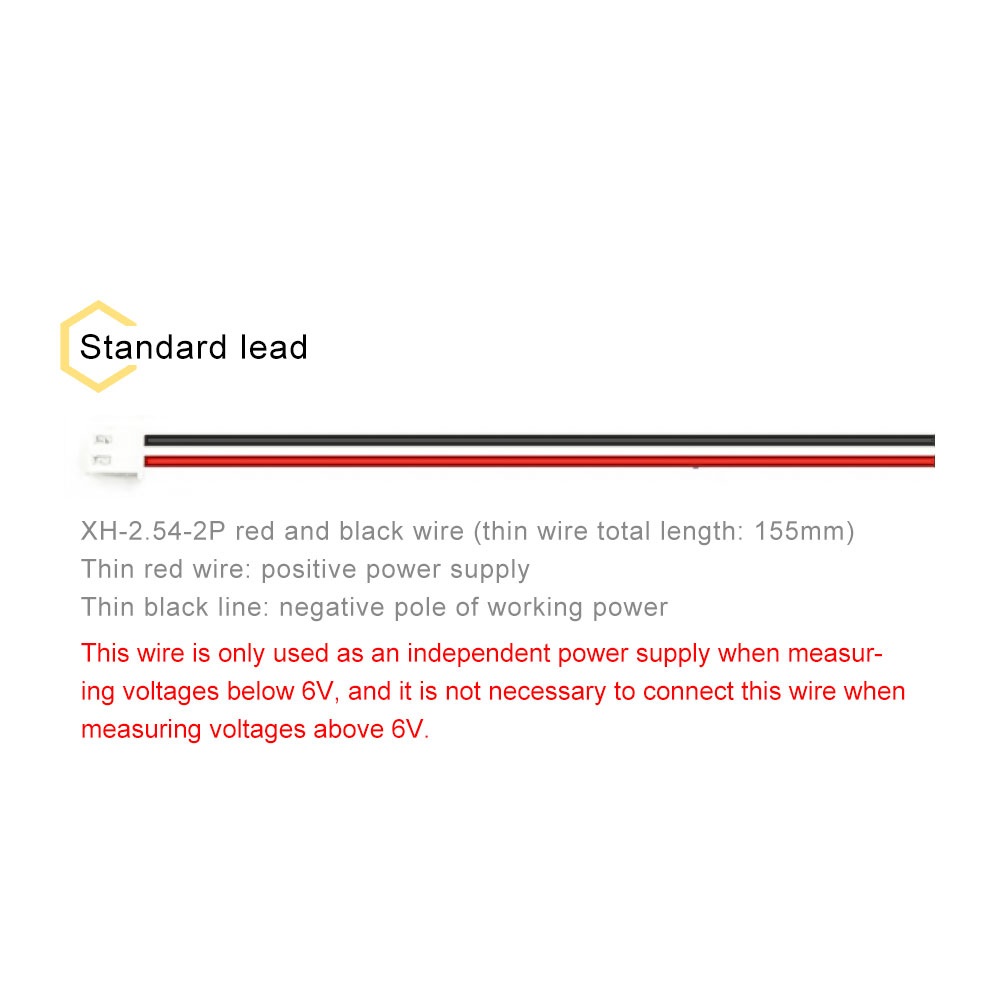

XH-2.54-2P red and black wires

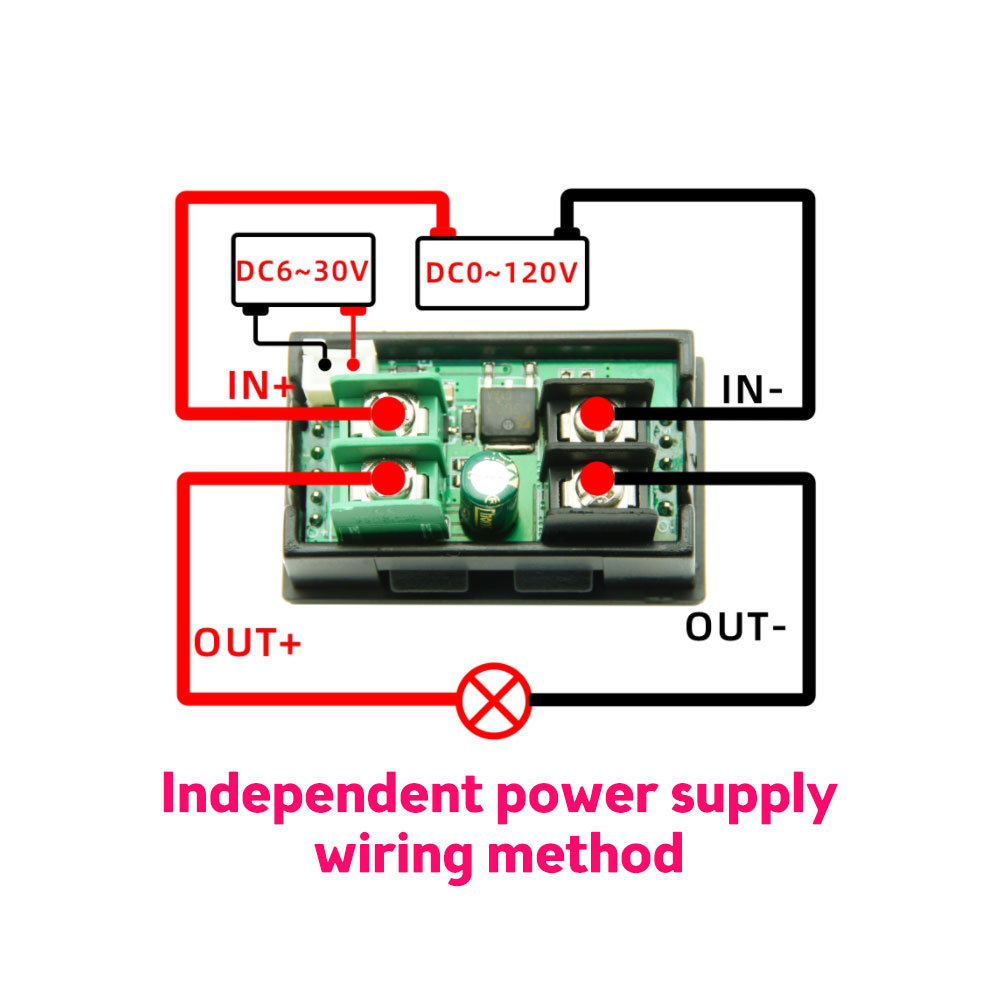

Thin red wire: positive power supply
Thin black wire: Negative, and thick black wire construction site, do not need to connect when measuring loop current
This wire is only used as an independent power supply when measuring voltages below 6V, and it is not necessary to connect this wire when measuring voltages above 6V.

System menu entry and setting method:

1. Enter the system menu

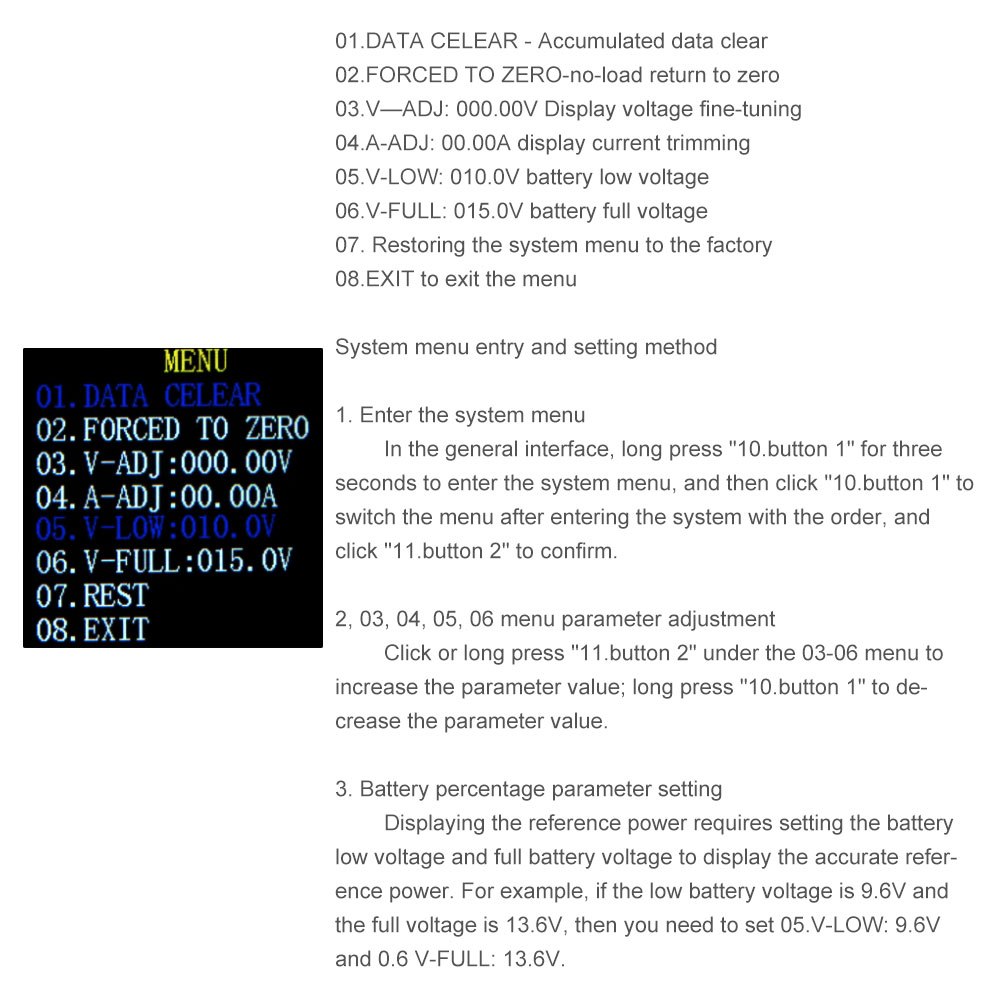

In the general interface, long press "⑩ button 1" for three seconds to enter the system menu, and then click "⑩ button 1" to switch the menu after entering the system with the order, and click "⑪ button 2" to confirm.

2, 03, 04, 05, 06 menu parameter adjustment
Click or long press "⑪ button 2" under the 03-06 menu to increase the parameter value; long press "⑩ button 1" to decrease the parameter value.

3. Battery percentage parameter setting
Displaying the reference power requires setting the battery low voltage and full battery voltage to display the accurate reference power. For example, if the low battery voltage is 9.6V and the full voltage is 13.6V, then you need to set 05.V-LOW: 9.6V and 0.6 V-FULL: 13.6V.

Package list:

Measuring instrument X1
Wire X1
